Exercise 1 - Pods

The goal of this exercise is to run our first application, an Apache HTTP Server, in OpenShift. For this we use a Pod which is the smallest deployable unit of computing that you can create and manage in OpenShift. A Pod is a group of one or more containers. In this exercise, we will deploy a Pod that runs a single container with the image ubi9/httpd-24:latest.

Note

For each exercise you can choose and only have to do either the 'Web Console' or the 'Command Line Interface (CLI)' section in oder to complete the exercise.

Web ConsoleCommand Line Interface (CLI)

Create a Pod

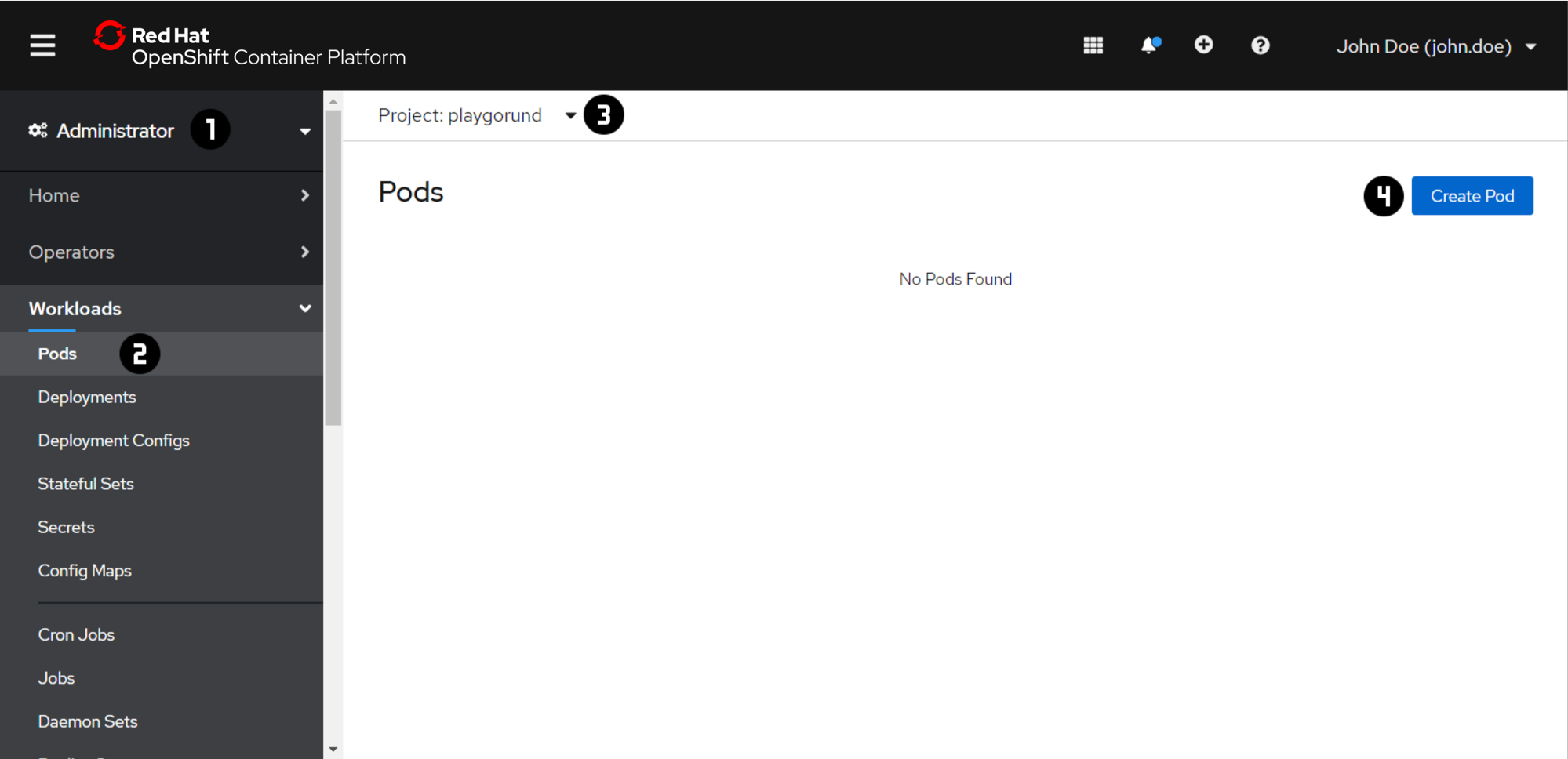

1. Switch to the 'Administrator' view using the dropdown menu at .
2. Navigate to 'Workloads' → 'Pods' .
3. Switch to the your project using the dropdown menu at . In each of the exercise make sure that you are in your project context before you are making any changes.
4. Press 'Create Pod' .

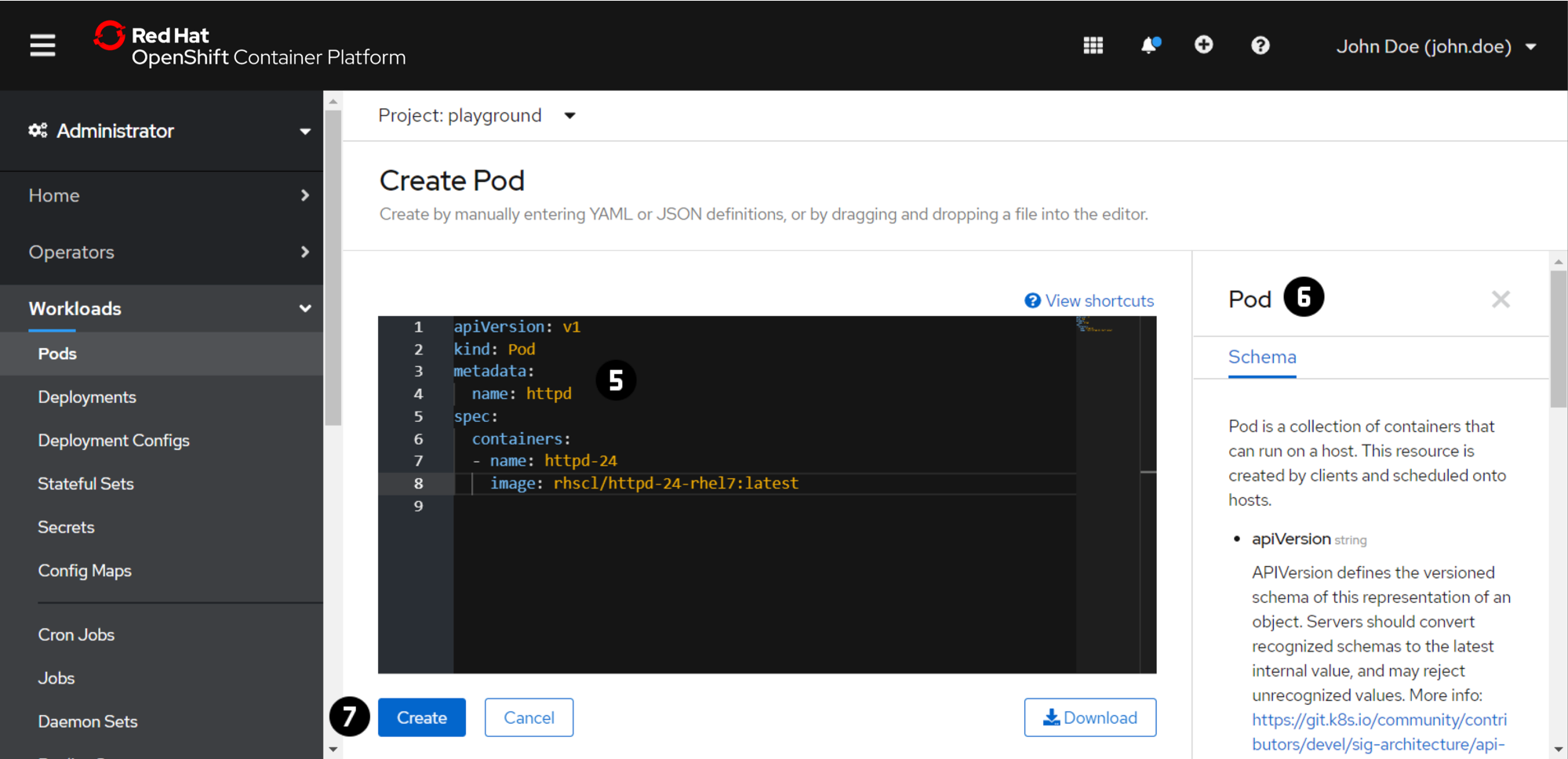

5. Copy the following Pod definition file to the editor :

   apiVersion: v1
   kind: Pod
   metadata:
     name: httpd
   spec:
     containers:
     - name: httpd-24
       image: ubi9/httpd-24:latest


   More detailed information about the Pod definition file can be found in the Tab at .
6. Press 'Create' .

Inspect a Pod

Note

If you have created the Pod using the CLI:

1. Repeat the steps 1 - 3 of the 'Create a Pod' task above
2. Open the 'Pod Details' by clicking on the Pod name in the 'Pods' overview table.

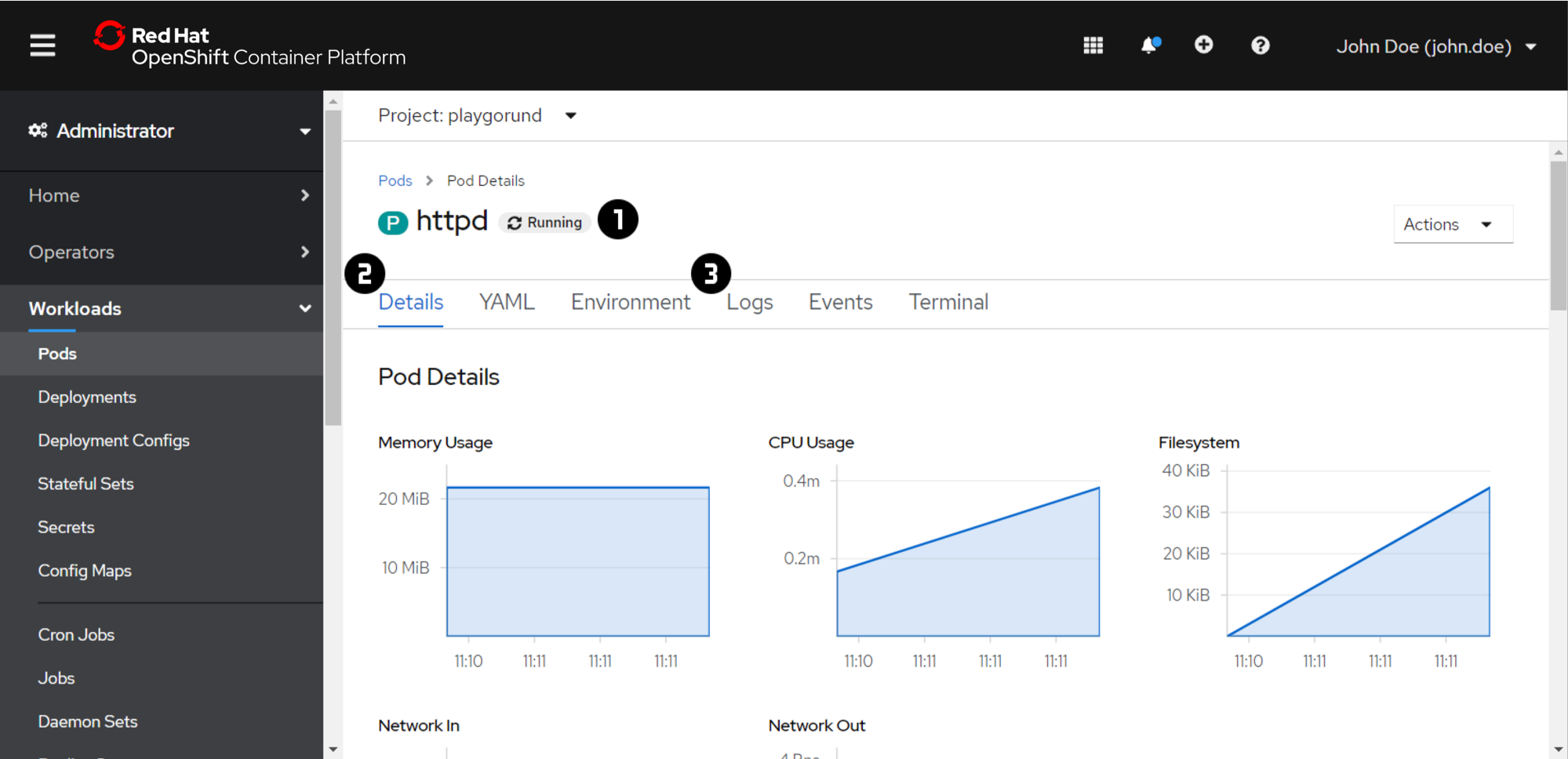

1. Check the status of the Pod at . The status should be 'Running' after a couple of seconds.
2. Check the 'Details' of your Pod.
3. In order to verify if the application in the Pod was started successfully, have a quick look into the 'Logs' .
4. Also check the 'Inspect a Pod' section for the CLI.

Delete a Pod

You won't need the Pod in the following exercises, therefore clean up your project.

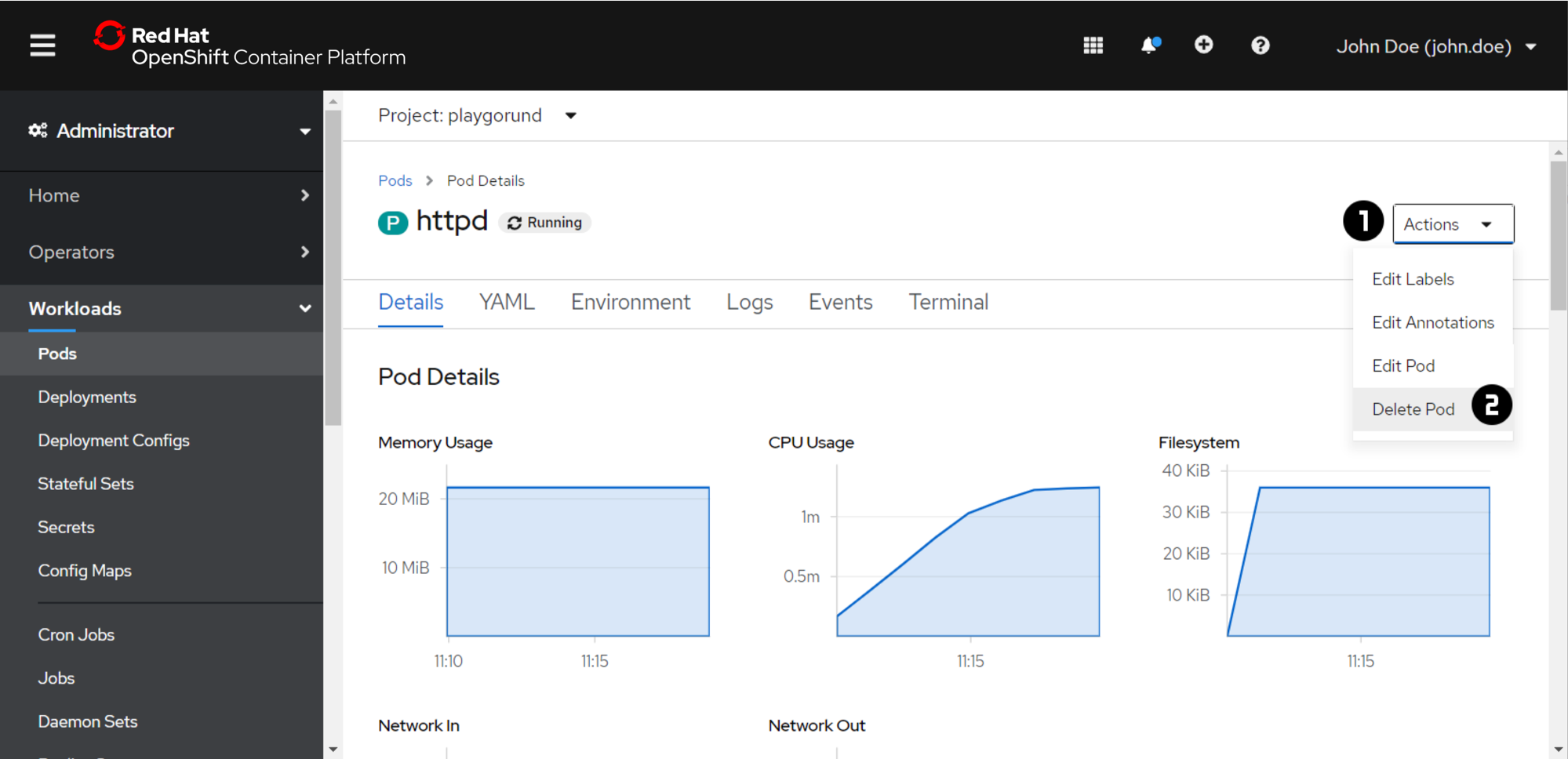

1. Navigate to the 'Actions' dropdown menu in the 'Pod Details'.
2. Press 'Delete Pod' .

Important

At the beginning of the exercise make sure that you are in your project context.

oc project <project name>

(replace <projet name> with the actual name of your own project)

Create a Pod

1. Create a Pod definition file called pod.yaml using the vi editor with the following content:

   apiVersion: v1
   kind: Pod
   metadata:
     name: httpd
   spec:
     containers:
     - name: httpd-24
       image: ubi9/httpd-24:latest


   More detailed information about the Pod definition file can be found in the OpenShift or Kubernetes Documentation.

2. Create a Pod by using the oc apply command.

   oc apply -f pod.yaml


   The output of the command should look like this:

   [~] $ oc apply -f pod.yaml
   pod/httpd created


Inspect a Pod

1. Let's verify the state of the Pod that you have created using oc get.

   oc get pods


   You can choose the output format <output format> with the -o flag. Try some of the formats: wide, json, yaml

   oc get pods -o <output format>


2. oc describe can be used to get detailed description of a given resource. Inspect the information and events of your Pod.

   oc describe pod <pod name>


3. Print the logs for a container in a Pod using the oc logs command in order to check if the application in the Pod was started successfully.

   oc logs <pod name>


4. Also check the 'Inspect a Pod' section for the Web Console.

Delete a Pod

1. You won't need the Pod in the following exercises, therefore clean up your project.

   oc delete pod <pod name>
