Exercise 3 - Networking

Each Pod has its own IP address in order to access the application on it over the network. However,Pods are non-permanent resources which are created and destroyed by the Deployment dynamically. Therefore the IP addresses of your application are changing dynamically too and it is difficult to keeps track of which IP address to connect to.

Services

The Service is an abstract way to expose an application running on a set of Pods and load-balance the requests across them. Instead of connecting to the IP addresses of the Pods directly you can connect instead to its Service.

Check out the Kubernetes Documentation for more information about Services.

Routes

The Route allows to expose services through HTTP(S) via a public DNS entry. This is needed to make Services accessible from outside of the cluster.

Check out the OpenShift Documentation for more information about Routes.

Note

For each exercise you can choose and only have to do either the 'Web Console' or the 'Command Line Interface (CLI)' section in oder to complete the exercise.

Web ConsoleCommand Line Interface (CLI)

Create a Service

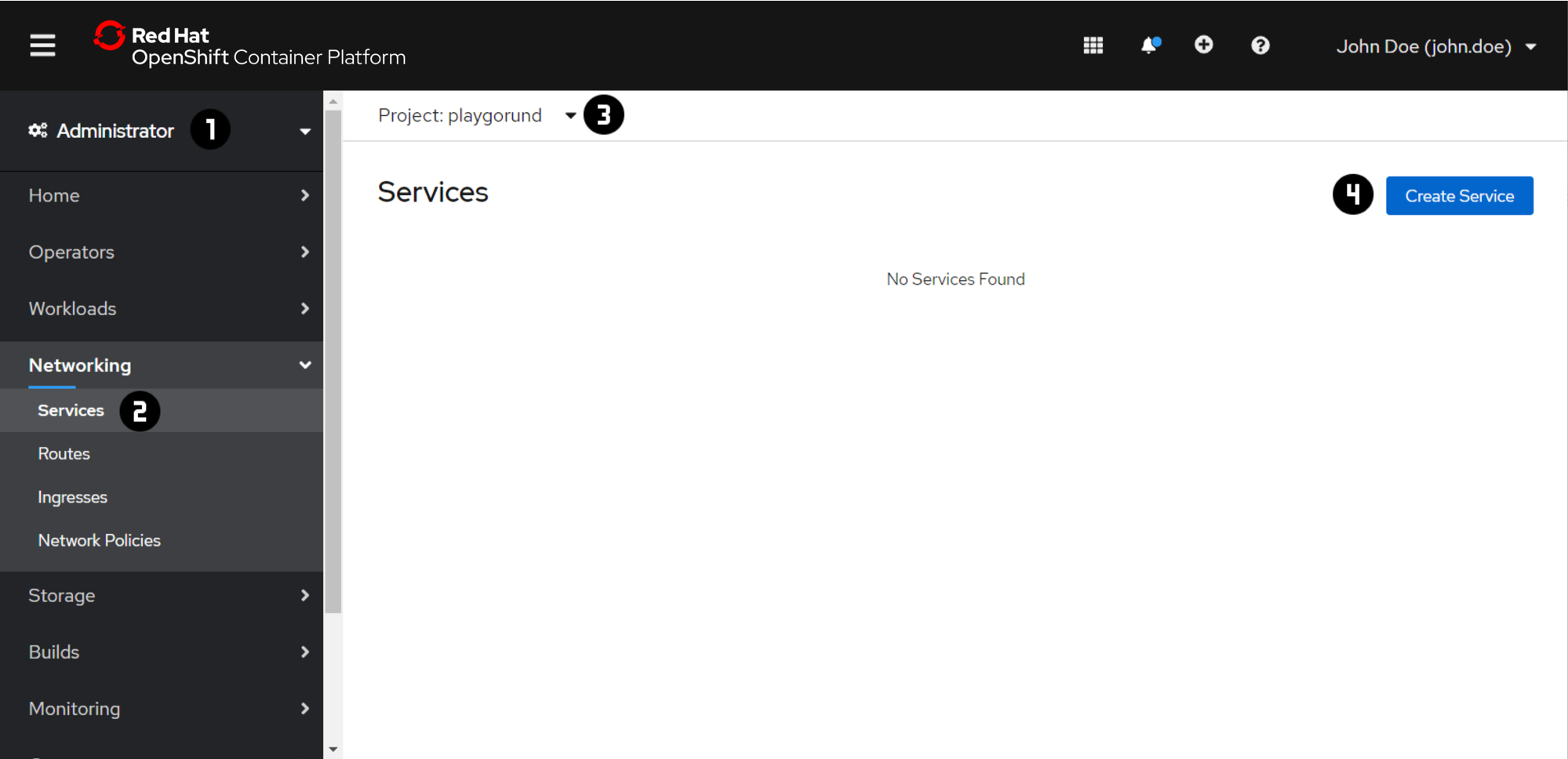

1. Switch to the 'Administrator' view using the dropdown menu at .
2. Navigate to 'Networking' → 'Services' .
3. Switch to the your project using the dropdown menu at . In each of the exercise make sure that you are in your project context before you are making any changes.
4. Press 'Create Service' .

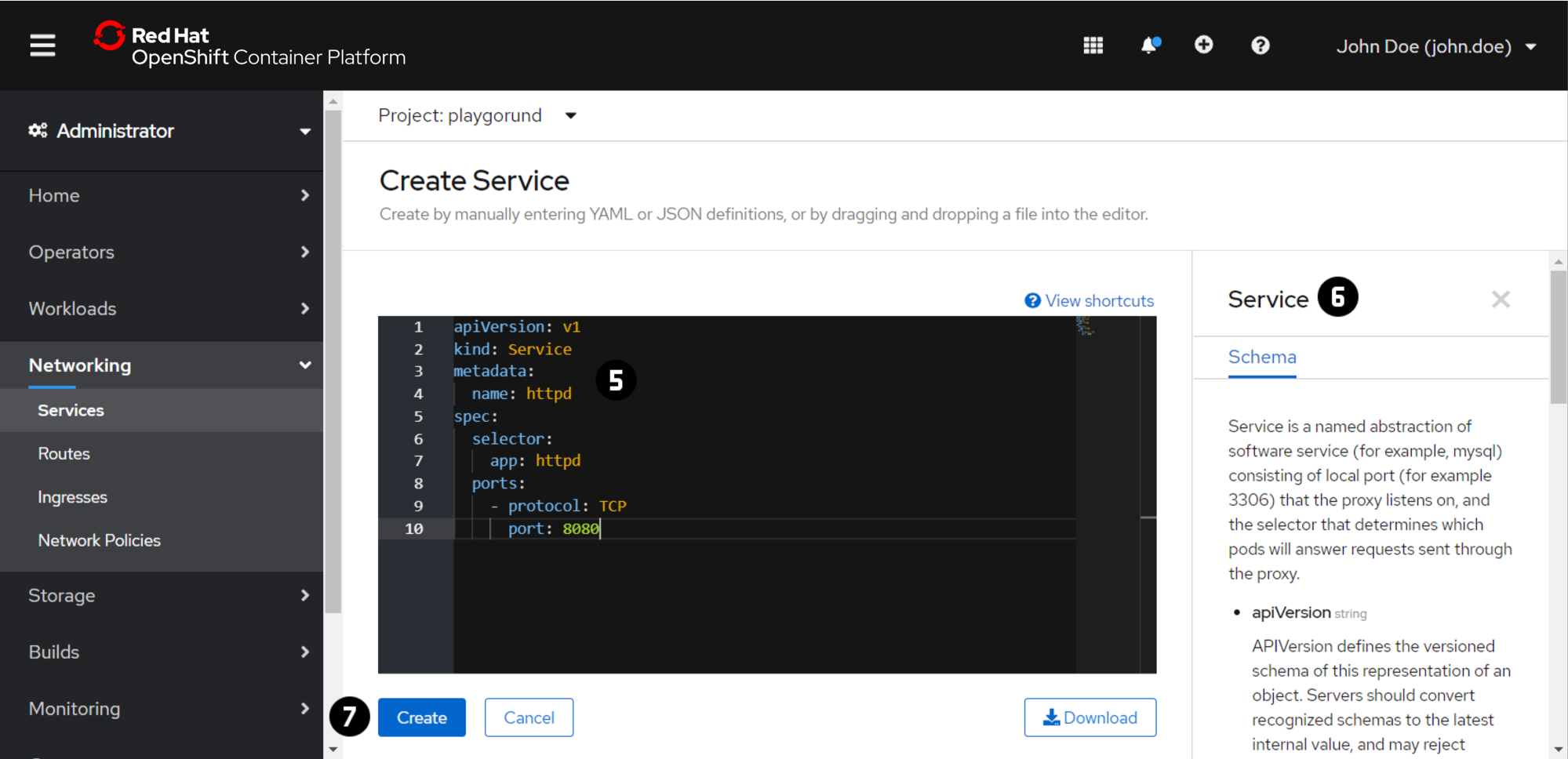

5. Let's create a Service for the port 8080. Copy the following Service definition file to the editor and replace <port> and <app label> with the correct value:

   apiVersion: v1
   kind: Service
   metadata:
     name: httpd
   spec:
     selector:
       app: <app label>
     ports:
       - protocol: TCP
         port: <port>


   More detailed information about the Service definition file can be found in the Tab at .
6. Press 'Create' .

Create a Route

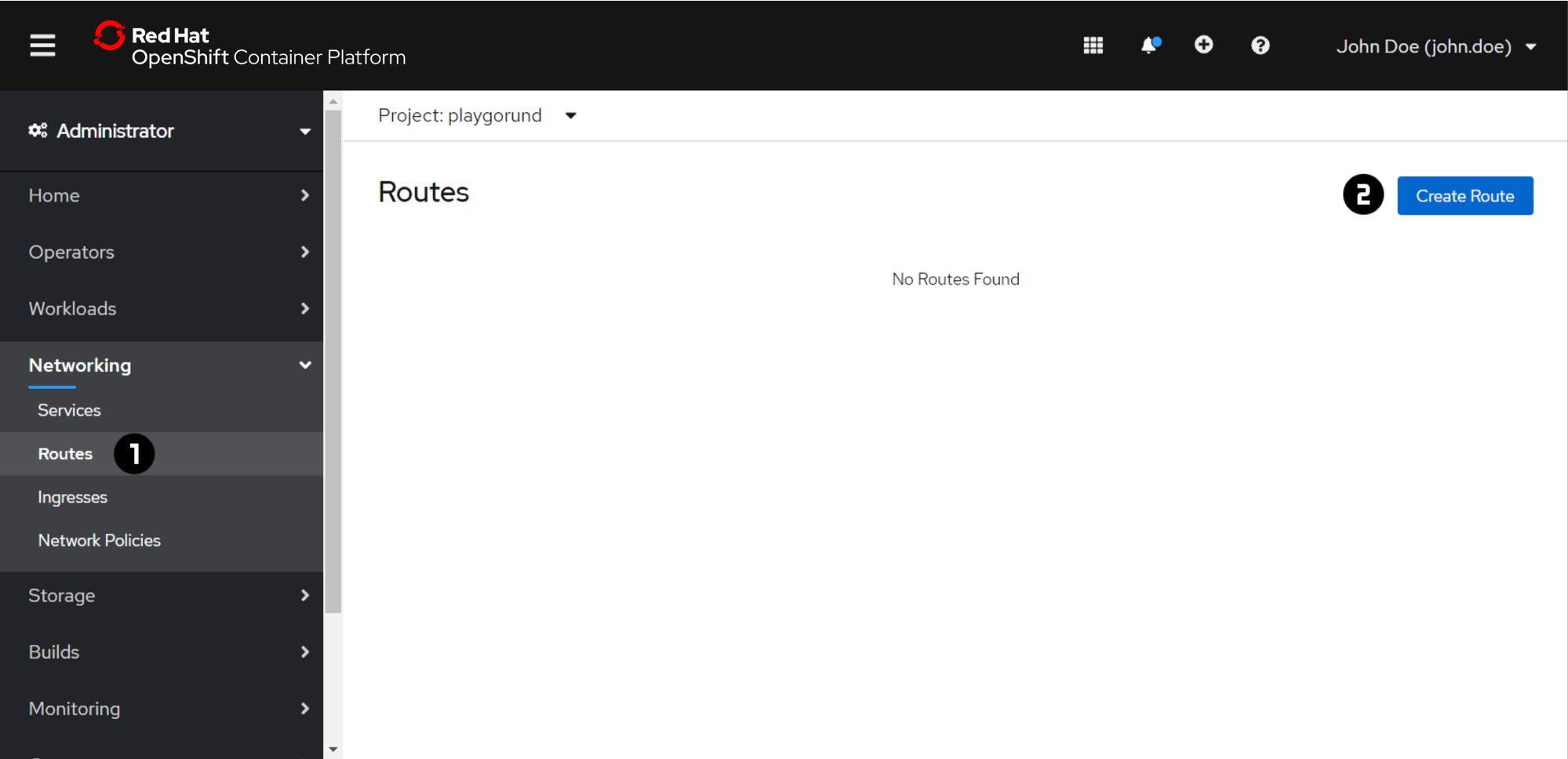

1. Navigate to 'Networking' → 'Routes' .
2. Press 'Create Route' .
3. Set the 'Name' to httpd.
4. Select the 'Service' you have created above in .
5. Choose the 'Target Port' 8080 from the dropdown menu .
6. Let's secure the Route by enabling the checkbox and selecting 'Edge' for 'TLS Termination' .
7. Scroll until the end of the page and press 'Create'.

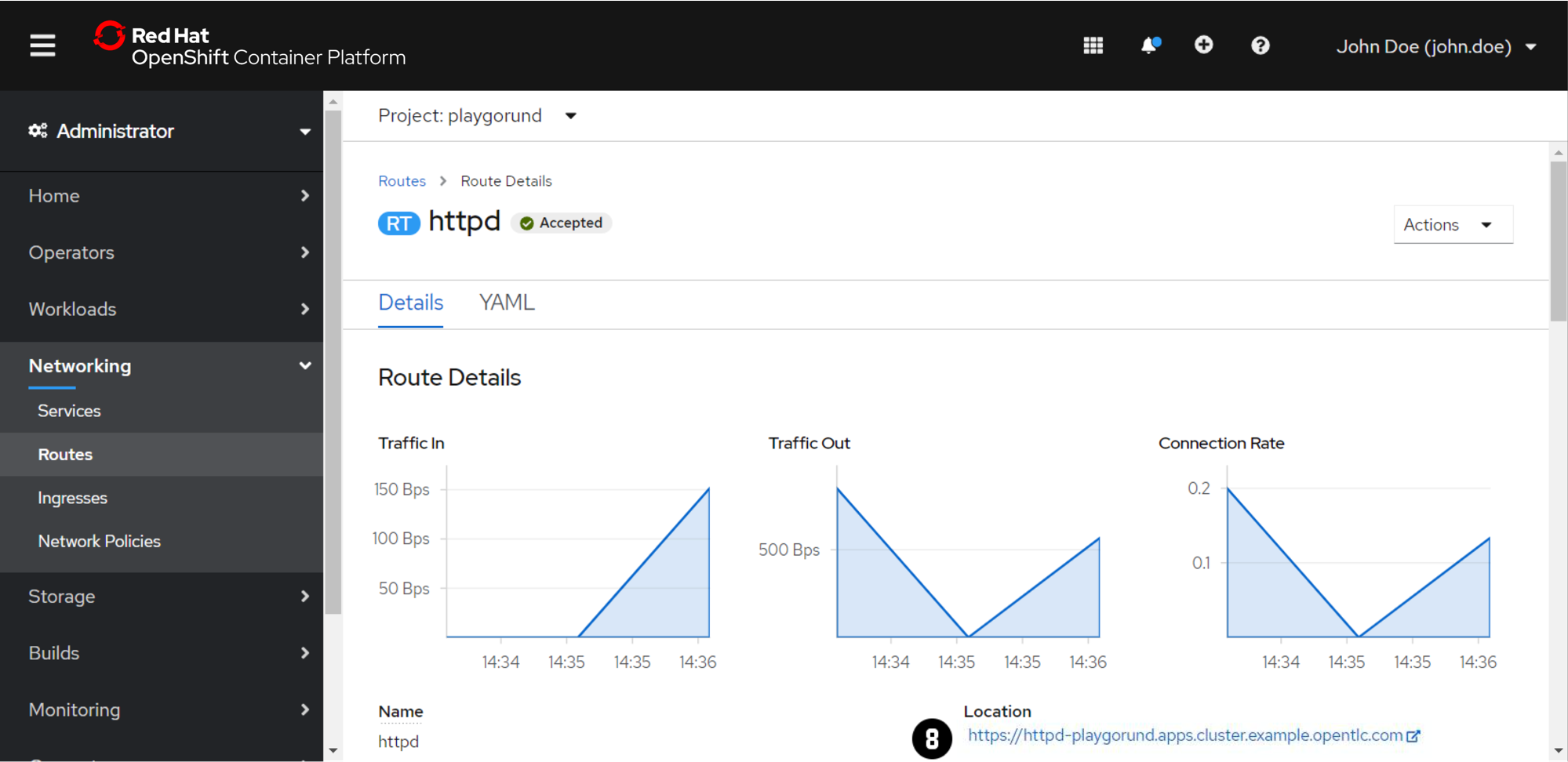

8. Open the link at the 'Route Details' page in order to test the route.

Important

At the beginning of the exercise make sure that you are in your project context.

oc project <project name>

Create a Service

1. Create a Service for the port 8080 of the Deployment that we have created in Exercise 2:

   oc expose deployment <deployment name> --port=<port>


2. Inspect the Service using the oc get or the oc describe command.

   oc get service -o wide


   oc describe service <service name>


   How many endpoints are connected to your Service and why?

   Solution:

   There are 2 endpoints connected to your Service, you can figure that out by using the oc describe command.

   [~] $ oc describe service <service name>
   ...
   Endpoints: <IP endpoint 1>:8080,<IP endpoint 2>:8080
   ...


   The reason that there are 2 endpoints is that we have 2 replicas configured in the Deployment. Let's compare the IP addresses of the endpoints with the IP address of each Pod. The IP address of the Pods can be retrieved using the oc get pods -o wide command. As you can see the Service is successfully connected to all Pods of your Deployment.

Create a Route

1. Create a Route in order to make the Service accessible from outside of the cluster.

   oc create route edge httpd --service=<service name>


2. Inspect the new Route using the oc get command.

   oc get routes


3. Try to connect to the https://HOST of the Route using the browser in order to test the route.
